VIAIR Single VMS BASE 485C

Specifications & fitment

Manufacturer / component part

485SB01

Selected configuration

Stealth Black

Vehicle fitment evidence

Universal 12 V system; conditional candidate for US 2024+ LC250, including 1958 / Land Cruiser / 2024 First Edition. No verified bolt-on bracket or blanket year/grade fitment. Confirm exact vehicle, mounting envelope and hybrid auxiliary-circuit supply.

Package contents

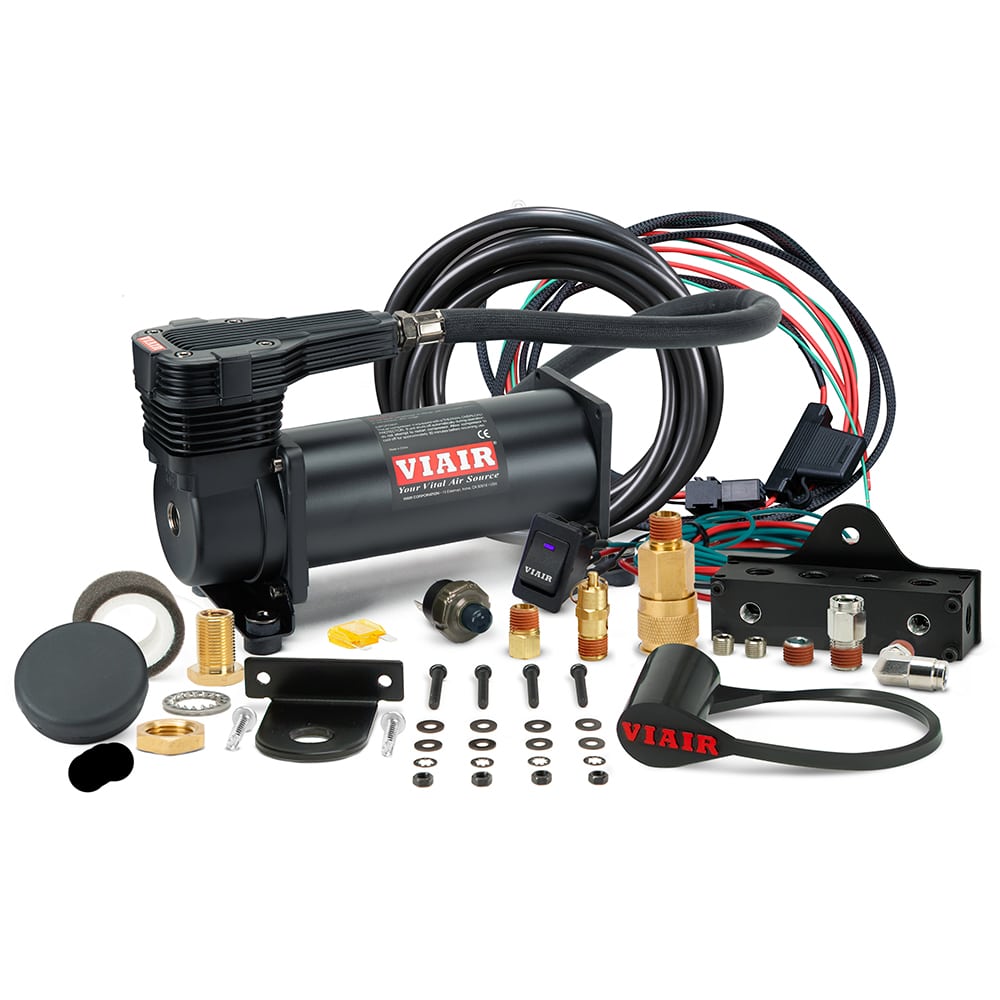

One 485C compressor, harness, remote air chuck kit and listed installation components. Confirm packing list; LC250-specific bracket and tire hose are not established as included.

Critical specifications

12 V; 2.24 CFM at 0 PSI; 200 PSI maximum; 100% duty at 200 PSI. 23 A maximum draw. Compressor envelope 10.63 × 4.1 × 6.44 in. Compressor alone 11.10 lb; complete system mass unverified.

Product mass

Product weight unverified

Net added vehicle weight

Net addition unverified

Weight basis

11.10 lb is the compressor component only, not the full kit or net vehicle addition. Harness, outlet, mounting and plumbing masses are unresolved; Shopify shipping grams excluded.

Professional installation

3–5 hr · researched planning estimate

Installation scope

3–5 hr researched professional planning estimate: select/secure a mounting location, route protected 12 V wiring and air lines, mount remote outlet and perform leak/function checks. Based on maker wiring/plumbing guidance; no published LC250 labor time. Custom fabrication, tank and extra plumbing are additional.

Fitment / supporting work

Do not connect to hybrid high-voltage equipment. Confirm a protected 12 V source, approved fuse/cable sizing, ventilation, dry intake and safe remote outlet. Pressure rating does not establish suitability for every connected device. Any tank, regulator, hose and LC250 mounting fabrication require separate confirmation/quote.

Required equipment & checks

Planning requirements for this product. Your exact vehicle and complete build still need confirmation.

Where to buy

Same selected configuration, ordered by listed price. These are dated source snapshots, not live inventory or delivered quotes.

Installation instructions & videos

3–5 hr · researched professional planning estimate. 3–5 hr researched professional planning estimate: select/secure a mounting location, route protected 12 V wiring and air lines, mount remote outlet and perform leak/function checks. Based on maker wiring/plumbing guidance; no published LC250 labor time. Custom fabrication, tank and extra plumbing are additional.

Instructions & manuals

Installation / assembly videos

No sufficiently matched installation video has been verified for this entry.

Component, family and different-vehicle references retain their scope; they do not certify the exact LC250 installation. Full video playback is not independently confirmed.

All documented configurations

Options stay within this product family. Compare the actual part number, contents and load selection.

Web-sourced user evidence

Selected source-linked paraphrases, not verified purchases or a representative failure-rate survey. Family and different-vehicle matches do not certify this SKU. No blended rating is inferred.

No sufficiently matched first-person report has been added for this product. A listing or brand reputation is not counted as an owner review.
