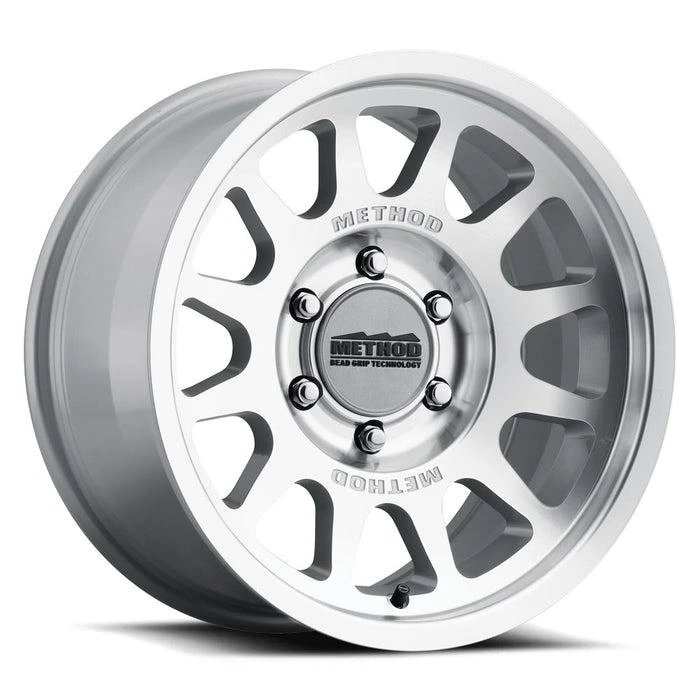

703 Bead Grip · 17×8.5 +35

Specifications & fitment

Manufacturer / component part

MR70378560335

Selected configuration

Machined - Clear Coat

Vehicle fitment evidence

US 2024+ LC250 comparison candidate, including 1958 / Land Cruiser and 2024 First Edition; exact year/grade/VIN, hub, lugs, brake/spoke clearance and tire fit require supplier confirmation. Method documents 703 17x8.5 +35 on a modified 2024 LC250; its lift/tire configuration is an example, not stock clearance certification.

Package contents

One wheel. Tire, TPMS, lug hardware and related equipment are separate.

Critical specifications

17×8.5 in; 6×139.7; +35 mm; 106.25 mm bore; 2650.0 lb rated load per wheel; 27.8 lb bare wheel. Bead Grip.

Product mass

27.8 lb / wheel

Net added vehicle weight

Net addition unverified

Weight basis

Method storefront specification data matched by exact manufacturer SKU and Shopify variant ID. Wheel Weight (lbs) is bare-wheel product mass; Package weights / Shopify shipping grams are not used. Net installed addition requires removed factory wheel mass.

Professional installation

1.5–2.5 hr · researched planning estimate

Installation scope

Shared professional planning estimate for five wheel/tire assemblies: mounting, balancing, TPMS and refitting review. Count once for the combined job; four assemblies use a 1–2 hr allowance. This is not manufacturer-published time.

Fitment / supporting work

Bead Grip rim design. 106.25 mm bore: confirm LC250 supplier-approved centering, lug seat/thread engagement, hub/cap and brake clearance. No blanket no-rub claim, especially with 35-inch tires; check full lock/bump and spare mounting.

Wheel dimensions

17 × 8.5 in · 35 mm offset

Bolt pattern

6 × 139.7 mm

Center bore

106.25 mm

Rated wheel capacity

2650 lb

Required equipment & checks

Planning requirements for this product. Your exact vehicle and complete build still need confirmation.

Where to buy

Same selected configuration, ordered by listed price. These are dated source snapshots, not live inventory or delivered quotes. Prices below are per component; choose four or five assemblies in the configurator.

Installation instructions & videos

1.5–2.5 hr · researched professional planning estimate. Shared professional planning estimate for five wheel/tire assemblies: mounting, balancing, TPMS and refitting review. Count once for the combined job; four assemblies use a 1–2 hr allowance. This is not manufacturer-published time.

Instructions & manuals

Exact written instructions have not been verified for this entry. Request the current part-number guide from the manufacturer.

Installation / assembly videos

Component, family and different-vehicle references retain their scope; they do not certify the exact LC250 installation. Full video playback is not independently confirmed.

All documented configurations

Options stay within this product family. Compare the actual part number, contents and load selection.

Web-sourced user evidence

Selected source-linked paraphrases, not verified purchases or a representative failure-rate survey. Family and different-vehicle matches do not certify this SKU. No blended rating is inferred.

No sufficiently matched first-person report has been added for this product. A listing or brand reputation is not counted as an owner review.
